KING GUN MODIFICATIONS

[powdersparky]

First time on the board. I bought the king gun and made some helpful mods copying my caswell gun's fluidization process.I went to my local Festo store and bought about 28 bucks worth of hardware and my first try has been positive.(No more powder builup in the barrel) I would like to post pictures but can't figure out how.If somebody can help me out it would be appreciated!More to follow...

[Guest]

Re: KING GUN MODIFICATIONS

First time on the board. I bought the king gun and made some helpful mods copying my caswell gun's fluidization process.I went to my local Festo store and bought about 28 bucks worth of hardware and my first try has been positive.(No more powder builup in the barrel) I would like to post pictures but can't figure out how.If somebody can help me out it would be appreciated!More to follow...

http://www.imageshack.us

resize photo to 640X480 on imageshack options. The photo will pop up in a small box. Click the box with the photo. The larger one will come up. Right click on it press properties. You will see a link or URL in the property box. Highlight it and copy it.

On the forum you can post your pictures like this in the message box. [img]PASTE%20LINK%20HERE%20YOU%20COPIED[/img] submit your message and it will pop up in your post.

It sounds like a lot of steps but its quick. I use it ALL the time.

[Guest]

Re: KING GUN MODIFICATIONS

I am interested to see what you have done.

[powdersparky]

Re: KING GUN MODIFICATIONS

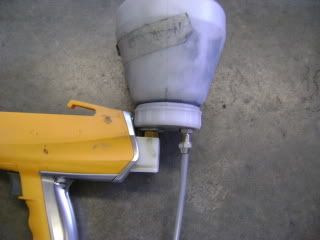

Thanks for the info. Here are the pictures.
[img][/img]
[img][/img]
[img][/img]
I will try to post pictures this evening of the inside of the cup.The following parts were used:

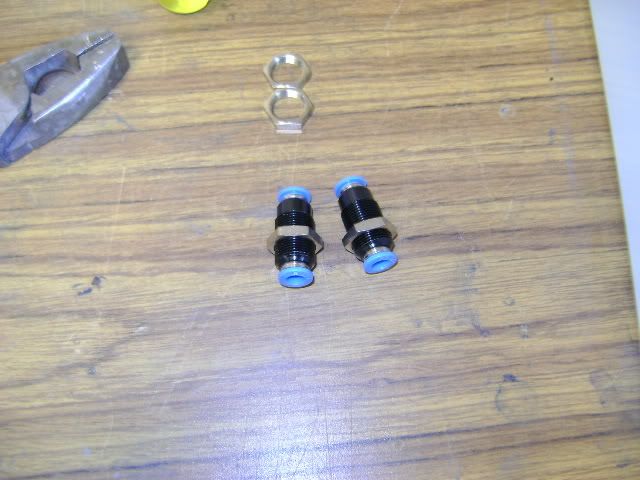

10 feet tubing 6mm pun-6x1-si,1 foot tube 8mm pun-8x1,25-si,1 T fiiting quick connect QST-8,and 2 crossing connectors QSS-6.

[CRAVED]

Re: KING GUN MODIFICATIONS

Thanks for the info. Here are the pictures.



I will try to post pictures this evening of the inside of the cup.The following parts were used:
10 feet tubing 6mm pun-6x1-si,1 foot tube 8mm pun-8x1,25-si,1 T fiiting quick connect QST-8,and 2 crossing connectors QSS-6.

one set of IMG tags per line

[Auto-Cycle PC]

Re: KING GUN MODIFICATIONS

Can you explain the first pic in a little more detail? I understand the cup/gun modification but not the valves.

[Smashing]

Re: KING GUN MODIFICATIONS

I don't understand much of what I'm looking at. I 've never had the pleasure of seeing any of the higher $$ guns in action.

[powdersparky]

Re: KING GUN MODIFICATIONS

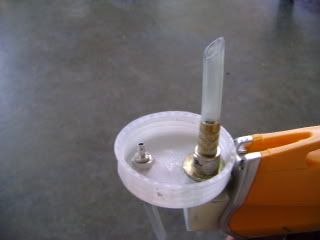

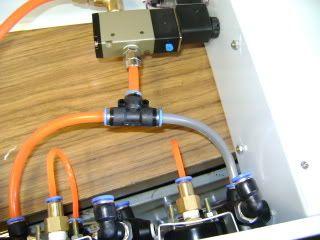

Here is what the iside looks like. I will cover the air input (fluidizer/powder fluffer) with some kind of cover, plastic or metal with four holes drilled on the sides to prevent powder from entering the hole. A buddy is supposed to bend me a copper tube to replace the vinyle tube and hose barb. Auto-cycle the first picture shows a T with the 8mm hose going to the bottom of the first regulator from the right. From the top you take a 6mm tube to my modifed cup cover.This mod will work if pbtp gets these;
http://www.made-in-china.com/image/2f0j ... up-WX-.jpg

[Guest]

Re: KING GUN MODIFICATIONS

I would love to see a video of your gun in action with this mod done to it. looks pretty simple to do and I have a ton of the old Caswell cups kicking around from my old hobby gun

[Desert PC]

Re: KING GUN MODIFICATIONS

Hey Sparky,
Thanks for sharing this mod! I was trying to figure out a way to modify the funnel cup the china cup comes with, but this is much easier. I approached the air supply for the 'fluff' function a bit differently and simply tee'ed off the gun supply-- see pics below. I used 1/4" tubing and fitting from HD as it is close to 6mm. I threw together the Cu tube and lid just to test the concept and it appears to work really well. For the fluffing air terminus, I used a 1/4 cap and drilled 2 small holes in it. The hobby gun lid is too flimsy and the pickup tube routing is too tight to get a good seal (gasket won't fit), so tonight I will add a stiffener to the lid, change the pick up tube location, and bend a piece of steel tubing for the "J" shaped pickup (the Cu did not want to cooperate with the tight radius bend). This will be the 3rd modification I've made, each making incremental improvements on the design. I hope this is the last one until PBTP can come up with the fluidizer system.

Desert PC

[powdersparky]

Re: KING GUN MODIFICATIONS

Great mod Desert Pc.(nice and inexpensive)I am using the bottle and cap without a gasket and the powder is not leaking.Yes the cover is really flimsy and I need something a little sturdier.I am looking for a donor metal cap.Your air input cap looks good.
I used a plastic acorn nut with four holes drilled in it.
I learned doing this that the perfect entering PSI for the system is 30 psi and ajust both knobs according to the amount of powder you want to exit the gun.
Crimson,I don't have a video function on my camera but I will post some pictures.For under 30 bucks this is a great mod especially knowing it will work with a powder pump and hopper that I will soon buy.

[Smashing]

Re: KING GUN MODIFICATIONS

Excuse my noob-ness since I've never held, let alone used anything other than a hobby gun...

How much different is this than the hobby gun now? Other than the power supply of course.

[C3PC]

Re: KING GUN MODIFICATIONS

Desert PC
Could you post a pic of the fitting you used for the fluff vent. And the top of the intake tube. Also, am I reading right you bought all the fittings and tubing from Home Depot?

Thanks in advance

[Desert PC]

Re: KING GUN MODIFICATIONS

C3PC,
Sorry, I haven't gotten a chance to take a pic, but here's what I did: I used a 1/4 NPTx 1/4" barbed fitting that passed through the lid; the 1/4" tubing from the tee just pushes on the barb. The 1/4" NTP pipe cap is what holds the barbed fitting on the cap ('bolts' it in place). I just drilled 2 small holes in the cap that provide the 'fluffing' action (visible in the picture). As for the intake tube upper half, it's just a "J" bend in copper, which was not too pretty, but here's a pic of a typical hobby gun bend. All this stuff was purchased from HD.

After using the setup to coat 4 bike frames this past weekend, I've identified further enhancements to the set up. I've ordered the materials and hope to experiment one night this week. 1) Backflow valve on air fluff supply (powder drains back into supply tube). 2) Nylon compression fittting for "J" bend tubing (improve clean up). 3) Dedicated clear cup (plastic jar), with metal lid to improve stiffness and seal. I'll post pics when I get these done.[attachment=0:288st3z3]hobbygun typ.jpg[/attachment:288st3z3]

[C3PC]

Re: KING GUN MODIFICATIONS

Thanks for the info. Maybe by the time I get back from the races you'll have the new pics up and I can do the mods. Leaving at 5 AM for the US Nationals...5 days of racing and NITROMETHANE
