Rolling Oven Rack

[wiseguyz]

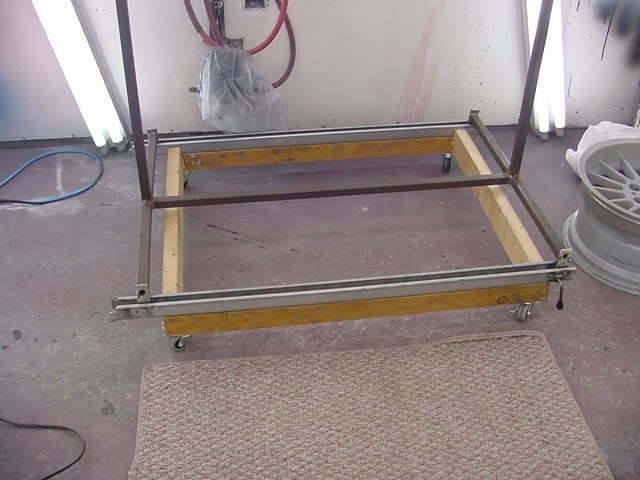

I finally got around to taking some pics of my oven rack for you guys. A simple lower trolley with swivel casters, and solid steel wheels on the rack portion that don't swivel. I roll the whole thing to the oven, pull a pin and roll the top rack right in.

[BeeBob]

Re: Rolling Oven Rack

Looks good Dan! The angle iron isn't real thick, but with the rigid steel casters does the rack jump much when they roll off the edges into the oven?

[Guest]

Re: Rolling Oven Rack

Nice job Dan! I spent the day working on something similar for the new oven. I really like the locking pin idea... I was way over complicating that part on my design by using locks and hinges like what would find on an oven or a blasting cabinet. I can see how the pin would reduce the amount of movement on the rack when it comes time to roll it in.

I see you're not using tracks in the oven. I see the U shaped piece close to the element, is that to align the rack? Is it difficult to keep the rack straight without them or how that does part work? See where your two "docking angles" stick out of the base and go into the oven? I was thinking of having the same inside the oven so that they line up and there is no change in surface height for the casters... What do you think? Good idea?

Thanks for sharing pictures man, definitely given me a lot of good ideas so I'll be asking questions if you don't mind.

[panheadstan]

Re: Rolling Oven Rack

I WAS WORRIED THE WHEELS MIGHT STRESS THE BOTTOM OF THE OVEN SO I MADE MINE ALMOST THE SAME BUT NO WHEELS, JUST SLIDE IT IN AND IT SITS ON THE SUPPPORTS UNDER THE SKIN

[Guest]

Re: Rolling Oven Rack

I WAS WORRIED THE WHEELS MIGHT STRESS THE BOTTOM OF THE OVEN SO I MADE MINE ALMOST THE SAME BUT NO WHEELS, JUST SLIDE IT IN AND IT SITS ON THE SUPPPORTS UNDER THE SKIN

Have you tried sliding the rack with heavy items? How easy is it?

[panheadstan]

Re: Rolling Oven Rack

TRIED WITH REAR END HOUSINGS, BIKE FRAMES,NOT A PROBLEM

[wiseguyz]

Re: Rolling Oven Rack

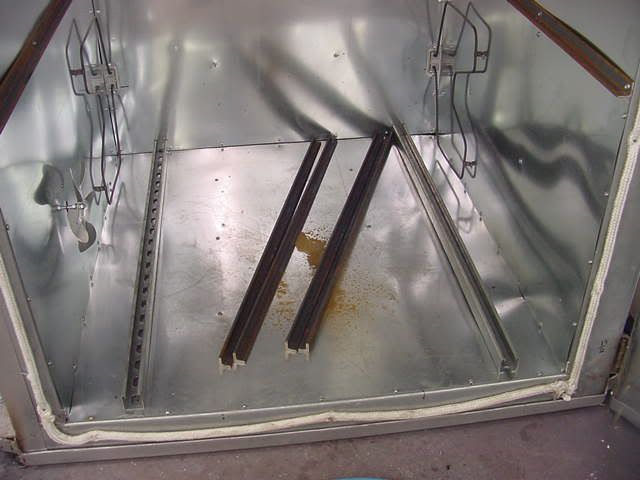

I do plan on extending the angle-iron tracks the full length of the oven, just haven't done it yet. That's why that strut is laying in there to guide the rack past the elements. Otherwise, yes there is a bit of a bump when the wheels roll off the angle on the bottom carriage.

[Guest]

Re: Rolling Oven Rack

I do plan on extending the angle-iron tracks the full length of the oven, just haven't done it yet. That's why that strut is laying in there to guide the rack past the elements. Otherwise, yes there is a bit of a bump when the wheels roll off the angle on the bottom carriage.

Perfect. Thanks for the heads up. I will build the rack according to your suggestions...

[Guest]

Re: Rolling Oven Rack

The rack is pretty cool wiseguyz.

Harley

[JW450R1]

Re: Rolling Oven Rack

yes,wise thats a nice set up.good job.

[Guest]

Re: Rolling Oven Rack

Easy and simple for most weight items. You can use unistrutt at the top if you want to have a lot of holes to move stuff around and I used the same rollers that work with unistrutt but used them upside down to roll it in. Just cover them up when shooting the powder so they roll free. I can take better pictures if any one is interested and wants something easy to handle and strong but lite weight.

I slide off the unistrutt to the unistrutt in the oven. You could just put some angle iron in also to keep it straight.






A more detailed picture a drawing can be had by contacting This Old Man at HGGGTTVV .coma

[Guest]

Re: Rolling Oven Rack

Very nice Duke! Thanks for sharing... giving me some really good ideas

[Guest]

Re: Rolling Oven Rack

Juan]Very nice Duke! Thanks for sharing... giving me some really good ideas

If you want to do something like this let me know and I will take some close ups of what will have to be done to make it work easy and save you the trouble of thinking to much Like we try to do with that Harleydad dude you know so he want bust a sweat

[Guest]

Re: Rolling Oven Rack

I would like some pictures as I have another oven that sits off the floor[attachment=1:29h4d2s2]IMG_0587_1.JPG[/attachment:29h4d2s2]
and this one that I can roll in but have to sandblast every few weeks[attachment=0:29h4d2s2]IMG_0588_1.JPG[/attachment:29h4d2s2]

[Guest]

Re: Rolling Oven Rack

[quote=duke 46]

Juan":1ni2pftd]Very nice Duke! Thanks for sharing... giving me some really good ideas

If you want to do something like this let me know and I will take some close ups of what will have to be done to make it work easy and save you the trouble of thinking to much Like we try to do with that Harleydad dude you know so he want bust a sweat [/quote:1ni2pftd]
I'd like to see some close ups Duke....Of the rack Duke!

Harley
